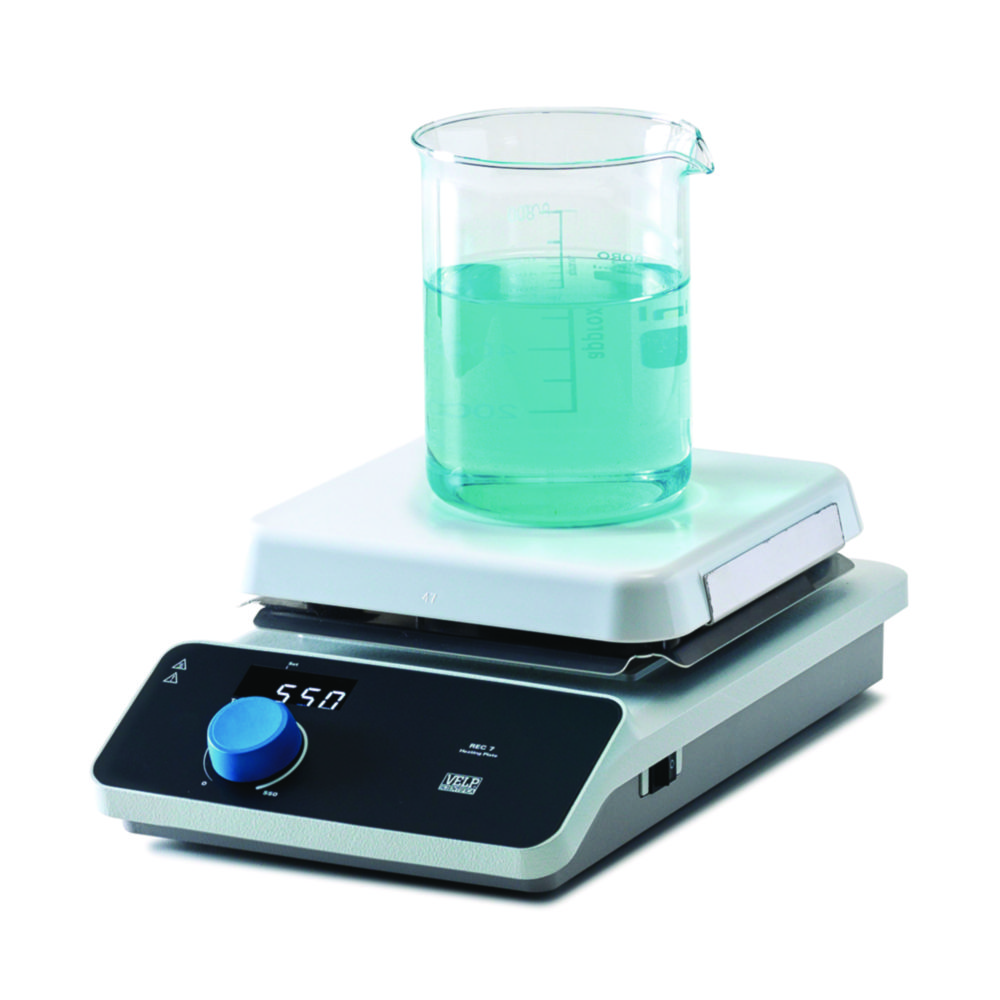

Heating plate REC 7 Digital
Product number:
4709822
Manufacturer:
Velp Scientifica SRL
Packaging information:
Description
The REC 7 Digital is equipped with a ceramic plate and ensures maximum homogeneity, thermal efficiency and temperature stability. The ceramic plate is resistant to chemicals and scratches, and is easy to clean. An external temperature sensor or the VTF temperature controller can be connected for precise thermoregulation of the sample. The temperature can be set easily using the digital display and the rotary knob. The hot indicator signals when the plate temperature is above 50 °C, even if the heating function is not active.
Properties
| Depth: | 340 mm |
|---|---|
| Depth heating area: | 180 mm |
| Dimensions (WxDxH): | 200 x 340 x 100 mm |
| Display: | Digital |
| Heating area (WxD): | 180 x 180 mm |
| Height: | 100 mm |
| Manufacturer Article Number: | F20700683 |
| Material hotplate: | Ceramic |
| Max. temperature: | 550 °C |
| Max. voltage: | 230 V |
| No. of hotplates: | 1 |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Type: | REC 7 Digital |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41102406 |
| Weight: | 3.5 kg |
| Width: | 200 mm |
| Width heating area: | 180 mm |
Skip product gallery
From
€263.00*
From
€88.00*
Accessories
Velp Scientifica SRL
Velp Scientifica SRL

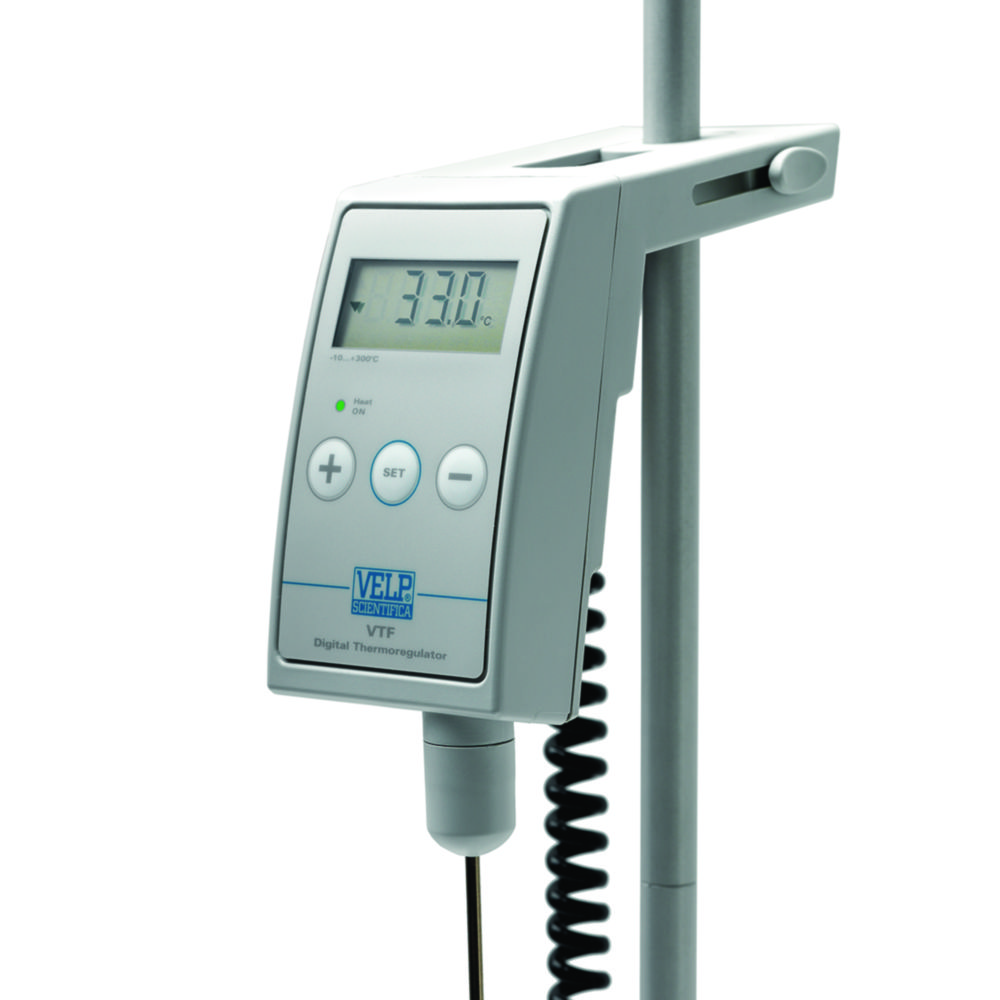

Digital temperature controller VTF
For exact temperature control. Power, load and thermal distribution can be adjusted with a control accuracy of ±0.5 °C. For use with heaters that have a direct connection for temperature sensors. With the PW10 accessory, the controller can be connected to most other heaters, such as water and oil baths, heating hoods and heating plates.Ready for use: with PT100 temperature sensor and tripod mounting for easy height and depth adjustmentWith integrated timer for unattended operationDevice stops in case of malfunctions in the temperature sensorErgonomic control panel with LCD displaySpecificationsLength of temperature probe:250 mmTemperature probe:Ø 3 mmSupport rod:Ø 10 ... 13 mmTemperature control range:-10 ... 300 °CAccuracy:±0.5 °CResolution:0.2 °CTimer:0 ... 1499 minDimensions:75 x 120 x 145 mmWeight:
IP code:0.3 kg
IP 54Power supply:12 VWarranty:3 years
Velp Scientifica SRL
Velp Scientifica SRL
Velp Scientifica SRL

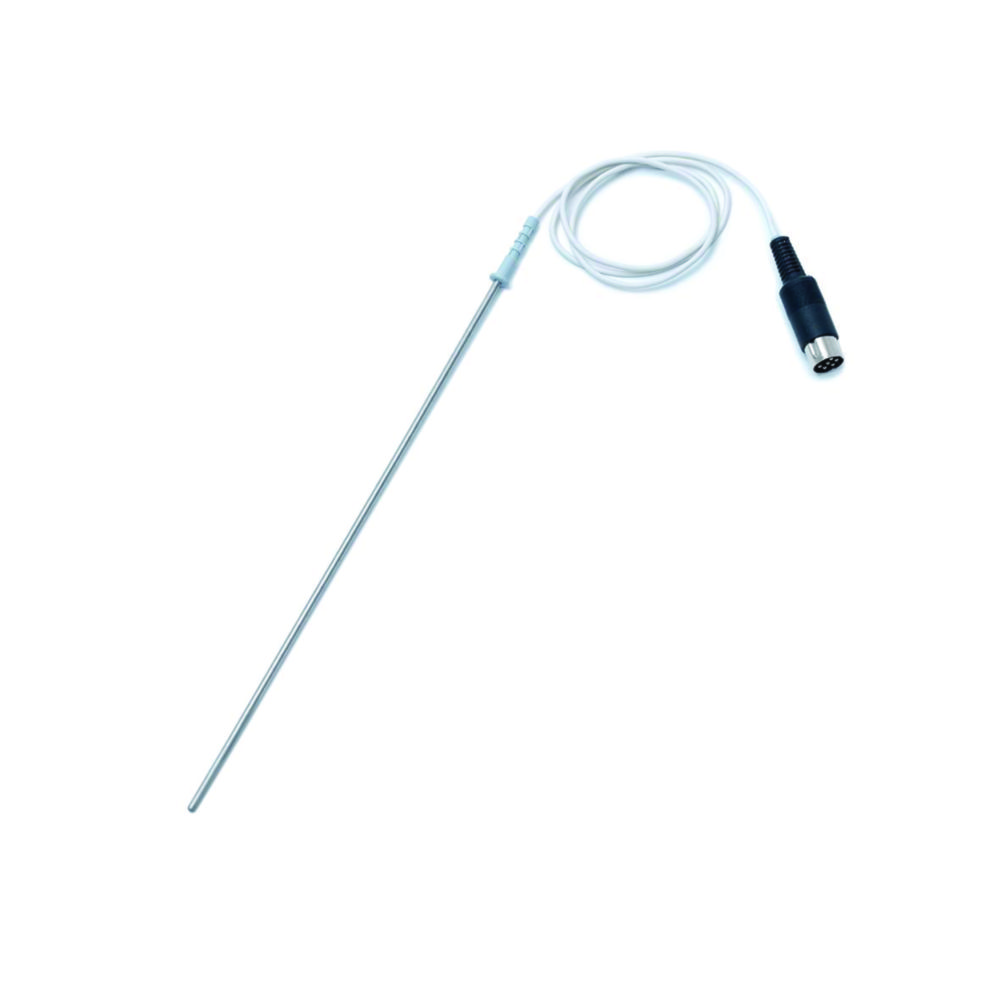

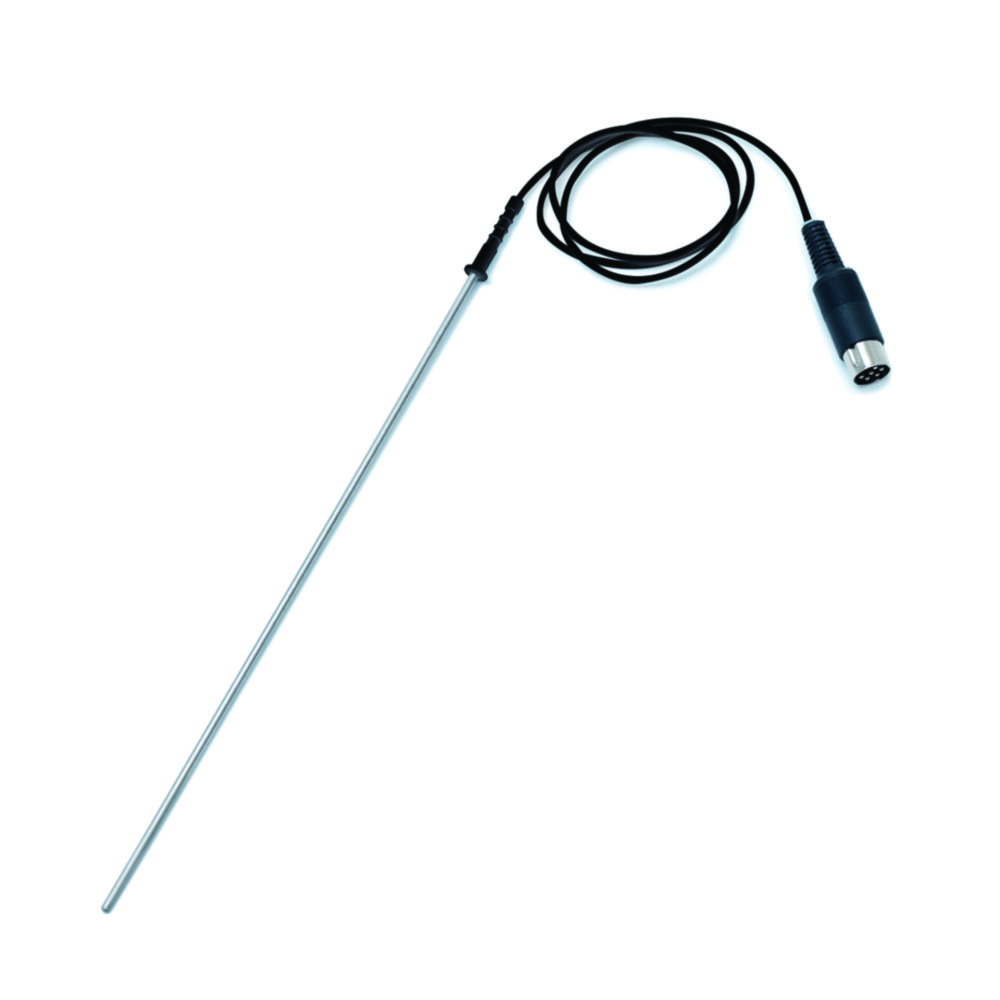

Temperature probes for Velp magnetic stirrers
Temperature probes for precise temperature control.
