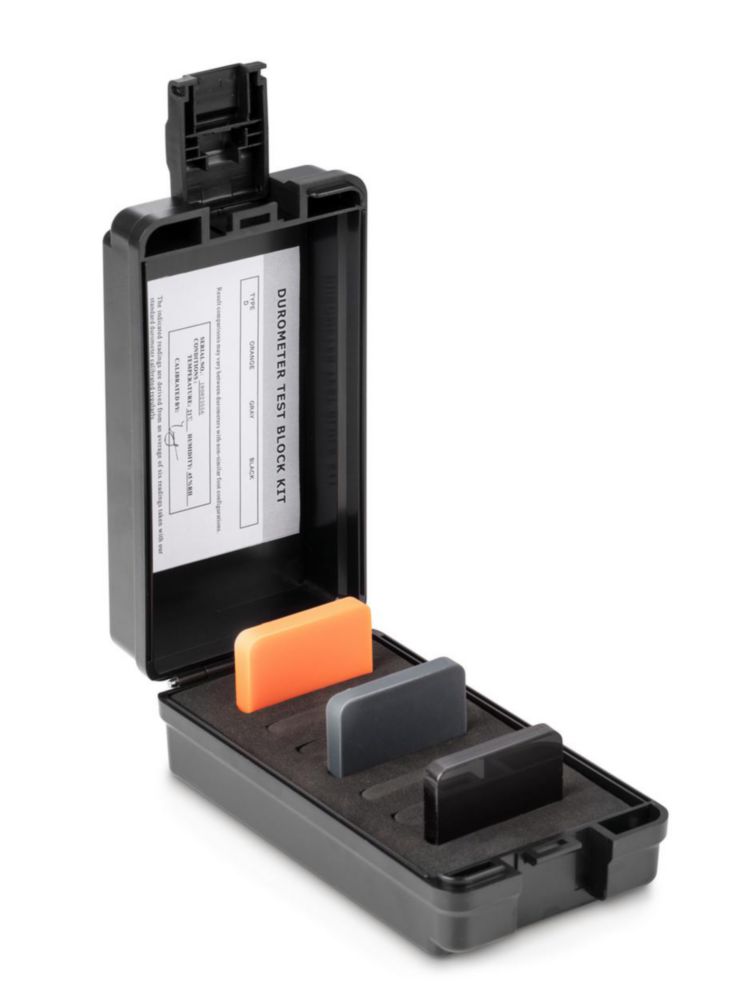

Hardness comparison plates for Shore hardness testers, HB / HD
Product number:
6290428
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Length:
172 mm
Width:
93 mm
Height:
62 mm
Weight:
0.276 kg
Description
Properties
| Description: | 3 plates for Shore D, tolerance up to ±2 HD |
|---|---|
| Manufacturer Article Number: | AHBD-01 |
