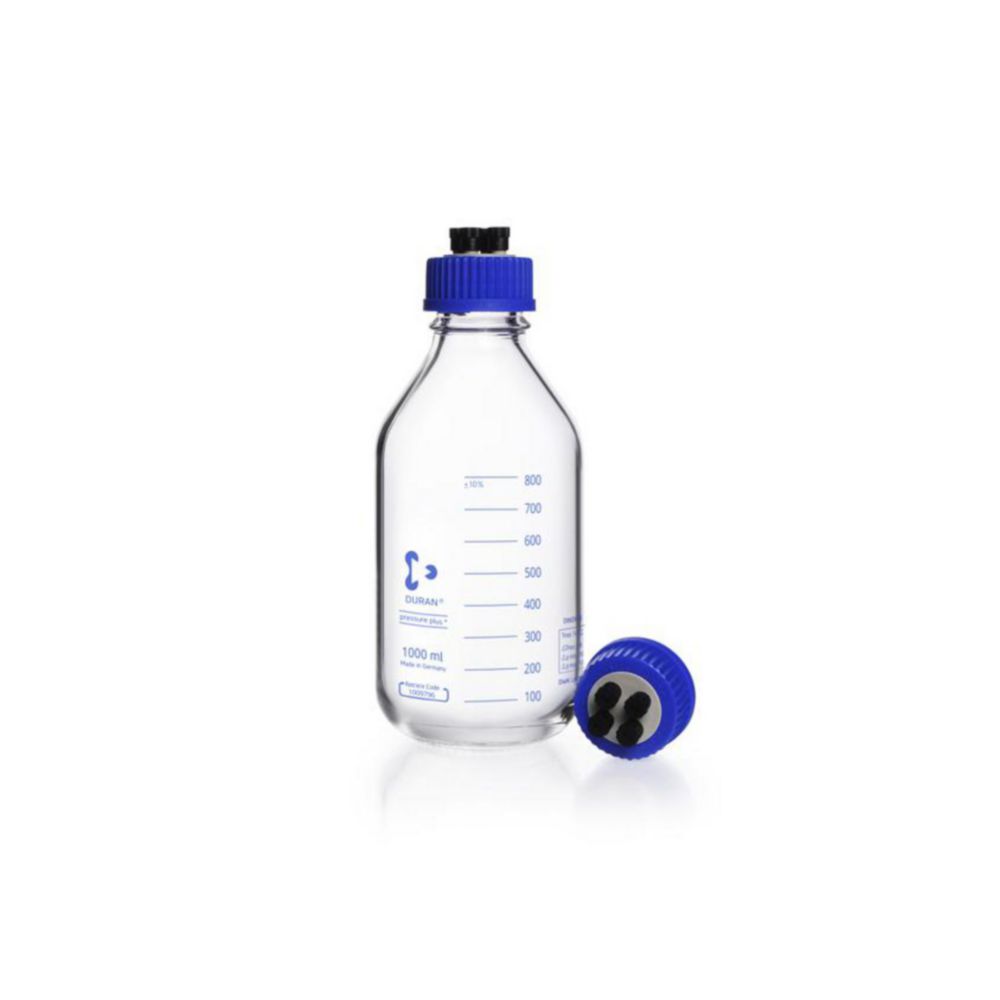

HPLC bottles, DURAN® complete system 4-port screw cap
€74.40*
Content:
1
| Quantity | Unit price |
|---|---|
| To 1 |
€74.40*
|
| From 2 |
€67.70*
|
5 Available. Delivery time: 1-2 workdays
Product number:
9072525
Manufacturer:
DWK Life Sciences GmbH (Duran)
Packaging information:
Length:
69 mm
Width:
67 mm
Height:
207 mm
Weight:
0.61 kg
Description
For sterile transfer of media or for feeding solvent to HPLC instruments. The bottle is pressure/vacuum resistant from -1 to +1.5 bar (tested by TÜV in accordance with EN 1596, GS marked). Complete with a 4-port screw cap (autoclavable, reusable) made from PP, 4 connection screw caps (black, M8 thread) and silicone seal. Suitable for tube diameters of 1.6mm and 3.2mm. Spare parts are available individually. Further connection system components for the GL45 thread are available upon request (Tubing not included). Neutral / Type I glass acc. to USP/EP. With Retrace Code (Batch Identification), with certificate available via the internet. Autoclavable.
Properties
| Autoclavable: | Yes |
|---|---|
| Colour: | Clear |
| Height: | 225 mm |
| Manufacturer Article Number: | 1129820 |
| Material: | DURAN® glass |
| Material closure: | PP |
| Nominal capacity: | 1000 ml |
| Thread: | GL45 |
| Type of graduation: | Printed |
| UNSPSC: | 41121804 |
| Ø: | 101 mm |
