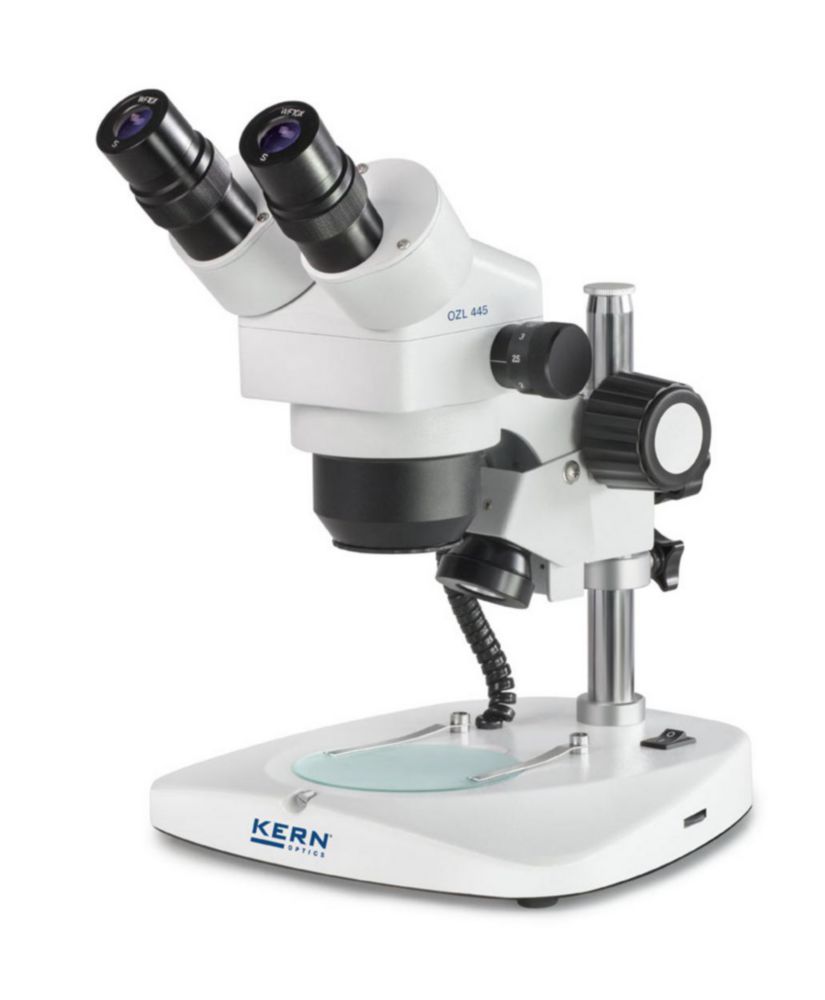

Greenough Stereo Microscopes Lab-Line OZL
Product number:
4657869
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Length:
373 mm
Width:
304 mm
Height:
470 mm
Weight:
5.424 kg
Description
The flexible all-rounder with zoom function for schools, training companies, inspection authorities and laboratories.
- Tube 45° inclined
- Wide Field HWF 10x/20 mm
- Diopter adjustment: Both-sided
- Illumination: 3 W-LED Incident and 3 W-LED transmitted, seperately dimmable
- Interpupillary distance 55 to 75 mm
- Large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- OZL 466 with strong, continuously dimmable, integrated LED ring illumination in the objective housing
- OZL 468 with integrated handle and stable, mechanical stand
- Protective dust cover, eye piece rubber caps, as well as multi-lingual user instructions included in the scope of supply
Properties
| Depth: | 235 mm |
|---|---|
| Dimensions (WxDxH): | 230 x 235 x 360 mm |
| Height: | 360 mm |
| Inclination angle tube: | 45° |
| Interpupillary distance: | 55 ... 75 mm |
| Light type: | LED |
| Magnification objectives: | 7,5x ... 36x |
| Manufacturer Article Number: | OZL 445 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 240 V |
| Min. interpupillary distance: | 55 mm |
| Min. voltage: | 100 V |
| Objective system: | Zoom |
| Power supply: | 100 ... 240 V |
| Tube: | Binocular |
| Type: | OZL 445 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Incident/transmitted light |
| Width: | 230 mm |
