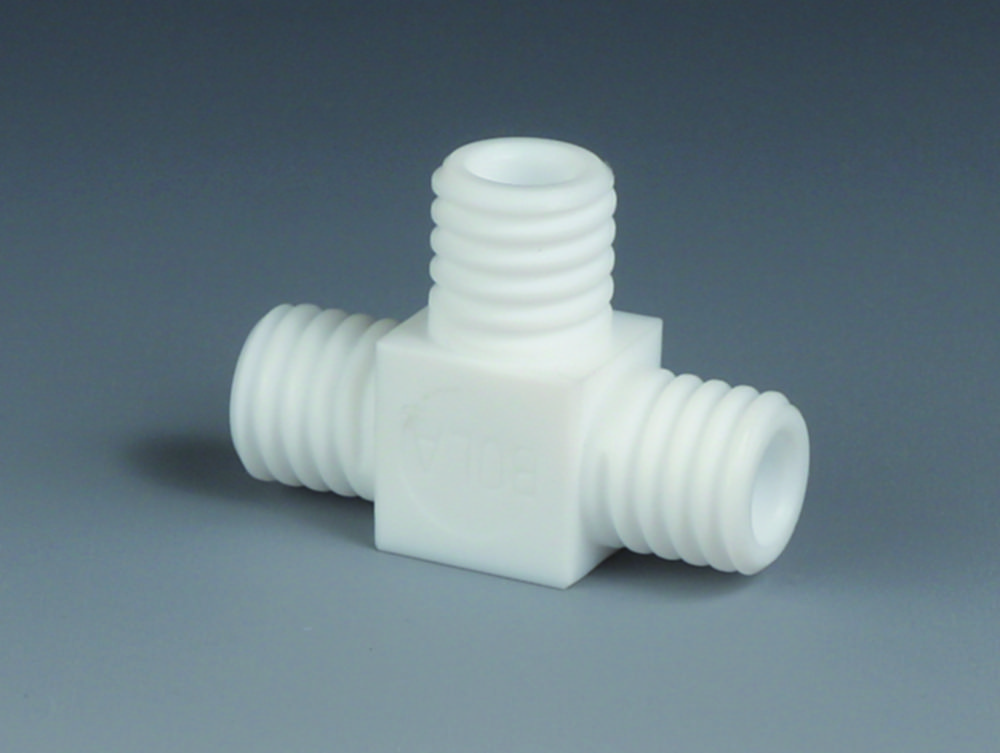

GL fittings, PTFE
Product number:
9207134
Manufacturer:
Bohlender GmbH
Packaging information:
Length:
48 mm
Width:
32 mm
Height:
20 mm
Weight:
0.035 kg
Description
Couplings with GL connector screwthread. Connect PTFE, PFA, FEP, glass and metal tubing. Fittings are chemical and temperature resistant to approx. 250°C. Can be used at working pressures of up to 10 bar when used in combination with Bola laboratory screwthread connections (at room temperature). A further advantage is that they can be used as expansion/reduction adapters to connect tubing of different diameters. For easy tubing connection we recommend accessory Bola Laboratory screwthread connectors which can be ordered separately.
Properties
| Bore: | 10.5 mm |
|---|---|
| Manufacturer Article Number: | D 540-18 |
| Material: | PTFE |
| Shape (Tubing connectors): | T-shape |
| Thread: | GL 18 |
| UNSPSC: | 41121815 |
