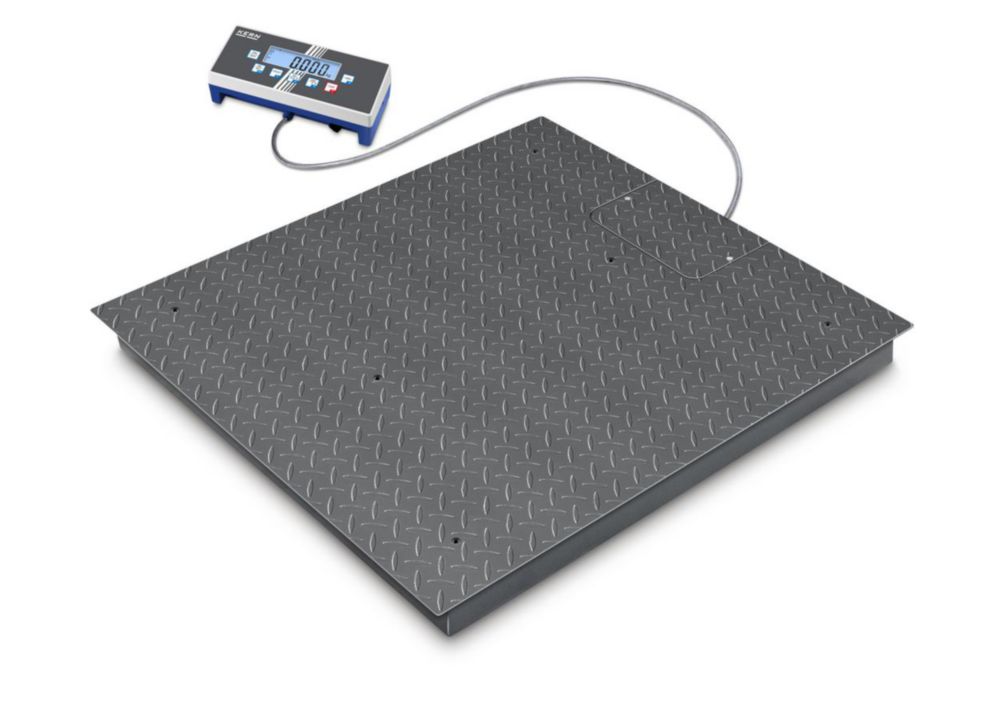

Floor scale BID
Product number:
6492265
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
180 kg
Description
- Weighing bridge out of anti-slip corrugated steel
- Silicone-coated steel load cells
- Data interface RS-232
- Calibrated models can optionally be operated with Bluetooth, WiFi, LAN (optional alibi memory required)
Scope of supply: Floor scale, universal mains adapter, display device, benchtop stand incl. wall mount for display device
Properties
| Adjusting program: | External |
|---|---|
| Depth weighing plate: | 1500 mm |
| Linearity: | ±3 kg |
| Manufacturer Article Number: | BID 3T-3LM |
| Max. load: | 3000 kg |
| Max. voltage: | 240 V·AC |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/US |
| Power supply: | 100 ... 240 V·AC, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 1000 g |
| Reproducibility: | 1 kg |
| Type: | BID 3T-3LM |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111509 |
| Verified calibration: | Verifiable |
| Warranty: | 3 years |
| Weighing plate (WxD): | 1,500 x 1,500 mm |
| Weight: | 155 kg |
| Width weighing plate: | 1500 mm |
