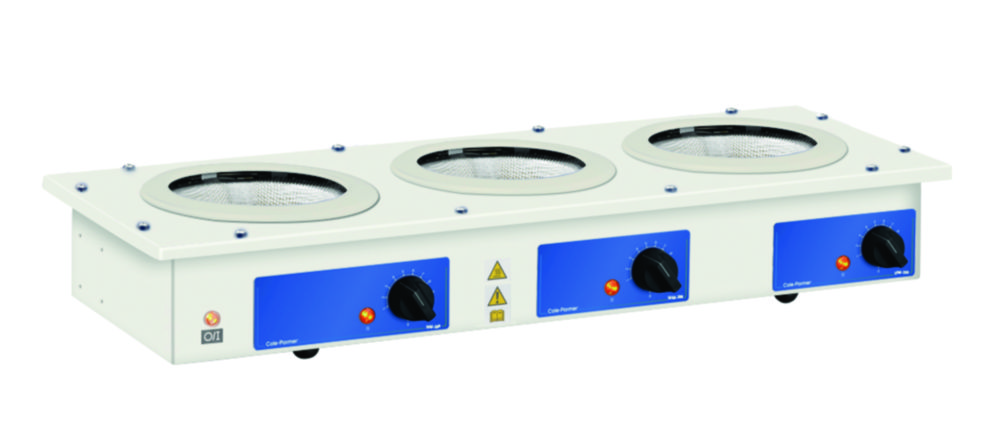

Extraction heating mantles HM-200-MP
Cole-Parmer Instrument
Product number:
9595113
Manufacturer:
Cole-Parmer Instrument
Packaging information:
Weight:
3.18 kg
Description
The multi position (extraction) mantles have a built-in electronic controller. The vented case's unique air flow ensures that the outer case does not heat up, preventing burns when touching it.
The multi position (extraction) mantles have a built-in electronic controller. The vented case's unique air flow ensures that the outer case does not heat up, preventing burns when touching it.
- Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching
- 3 support rods with 12.7 mm diameter are included
- Top cover is made of polypropylene and external surfaces are powder coated, for good general chemical resistance
- Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer
- Earth (ground) screen encloses the heater for added safety
- Individual heater cartridges are replaceable
- Neon lights indicate when power is on
- Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching
- 3 support rods with 12.7 mm diameter are included
- Top cover is made of polypropylene and external surfaces are powder coated, for good general chemical resistance
- Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer
- Earth (ground) screen encloses the heater for added safety
- Individual heater cartridges are replaceable
- Neon lights indicate when power is on
Properties
| Depth: | 270 mm |
|---|---|
| Dimensions (WxDxH): | 640 x 270 x 110 mm |
| Height: | 110 mm |
| Manufacturer Article Number: | 03076-01 |
| Max. temperature: | 450 °C |
| Max. voltage: | 230 V |
| No. of heating points: | 3 |
| Plug type: | EU/UK |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 180 W |
| Type: | HM-200-MP3-100 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41-10-24-22 |
| Volume vessel: | 100 ml |
| Width: | 640 mm |
| With stirring function: | No |
