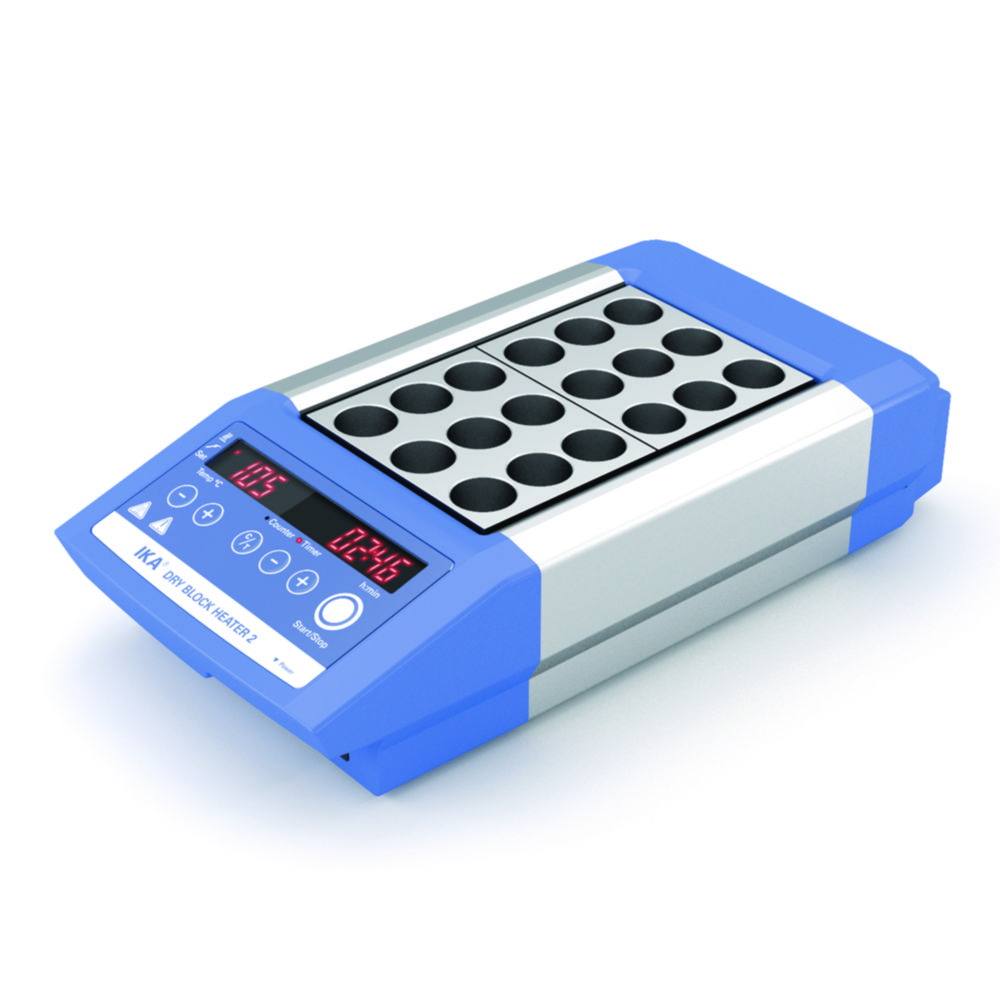

Dry Block Heater
Product number:
9816806
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Description
Digital block heaters for 1, 2, 3 or 4 aluminium blocks provides precise temperature control in small vessels. Included PT 1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations.
Without blocks. Please order separately.
- Stepless adjustable temperature up to 120 °C
- Timer: Countdown, adjustable from 1 min to 99 h 59 min
- Counter: Display of heating time
- Highly versatile with a large number of blocks
- Error code display
- Fixed safety circuit
- Acoustic signal at end of test
Without blocks. Please order separately.
Properties
| Depth: | 304 mm |
|---|---|
| Dimensions (WxDxH): | 151 x 304 x 73 mm |
| Heating capacity: | 250 W |
| Height: | 73 mm |
| IP code: | IP 21 |
| Manufacturer Article Number: | 0004025203 |
| Max. heating speed: | 4.5 °C/min |
| Max. temperature: | 120 °C |
| Max. voltage: | 240 V |
| Min. temperature: | +5 °C |
| Min. voltage: | 220 V |
| No. of blocks: | 2 |
| Plug type: | CH |
| Power supply: | 220 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | RT+5 ... 120 °C |
| Temperature addition: | RT |
| Temperature uniformity: | ± 0,2 K (37 °C) |
| Tempering: | heating |
| Type: | Dry Block Heater 2 |
| Type of auxiliary energy: | Mains connection |
| Width: | 151 mm |
| With lid: | No |
| With timer: | Yes |
