Digital refractometer ORL
Product number:
6321932
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
1.004 kg
Description
Accurate and maintenance-free digital benchtop refractometer with 2 scales, for universal applications in the laboratory.

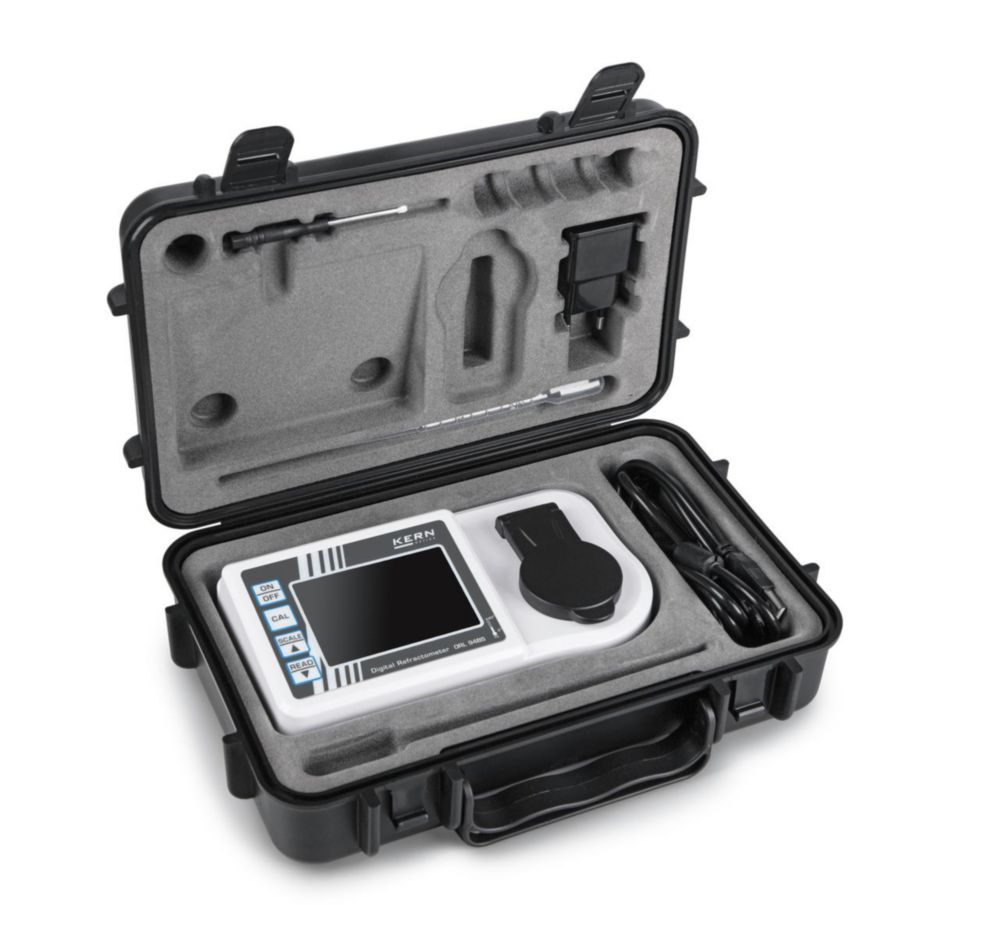

Scope of supply: Digital refractometer, pipette, storage case, USB cable, power adapter, screwdriver
- Large multifunction display with integrated temperature display
- Automatic temperature compensation (ATC)
- Calibration with distilled water
- Automatic power-off after 3 minutes
- Mean value measurements possible
- USB connection or 1 × rechargeable battery 3.7 V, 3000 mA (not included in scope of supply)
Scope of supply: Digital refractometer, pipette, storage case, USB cable, power adapter, screwdriver
Properties
| Accuracy: | ± 0,1 % Brix± 0,0002 nD |
|---|---|
| Depth: | 100 mm |
| Dimensions (WxDxH): | 180 x 100 x 55 mm |
| Height: | 55 mm |
| IP code: | IP 43 |
| Manufacturer Article Number: | ORL 94BS |
| Max. temperature: | 40 °C |
| Max. voltage: | 240 V |
| Measured range: | 0 ... 94 % Brix1,3330 ... 1,5290 nD |
| Min. temperature: | 0 °C |
| Min. voltage: | 100 V |
| Plug type: | EU |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | 0 ... 40 °C |
| Type: | ORL 94BS |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| Weight: | 365 g |
| Width: | 180 mm |
