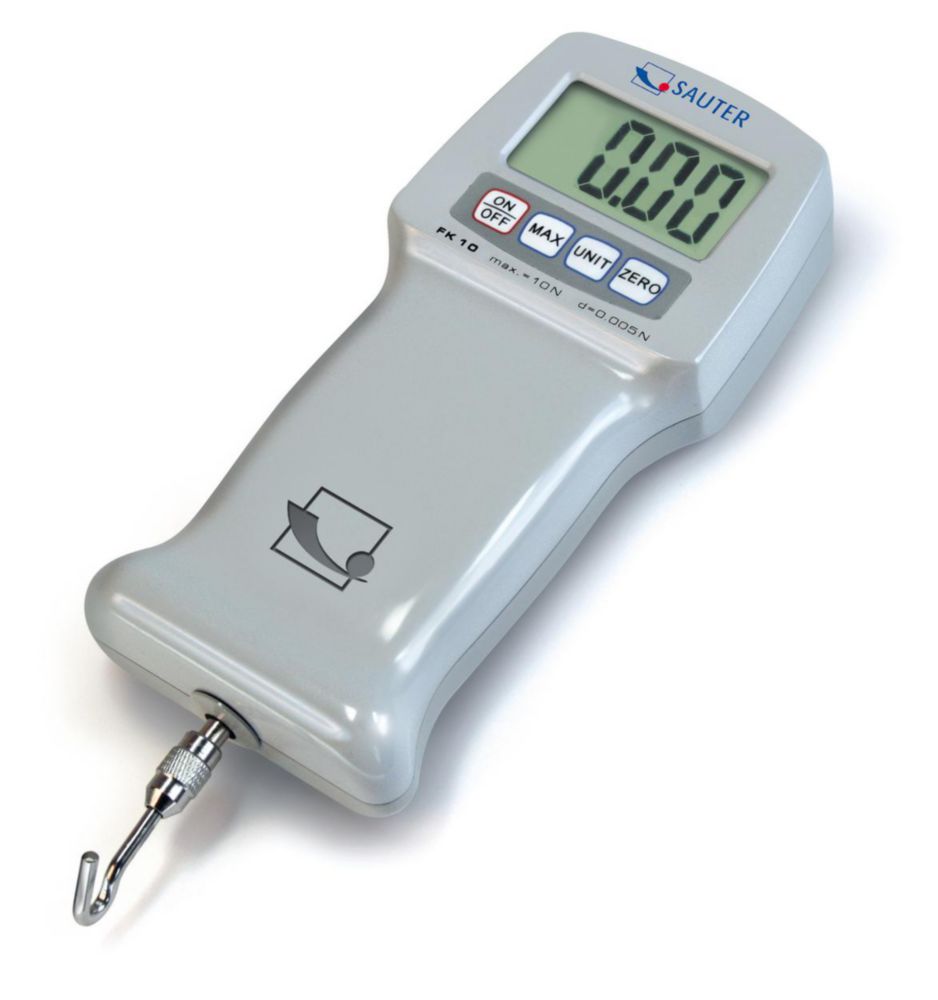

Digital force gauge FK

Depth:	82 mm
Dimensions (WxDxH):	195 x 82 x 35 mm
Display:	Digital
Height:	35 mm
Manufacturer Article Number:	FK 500
Max. measured value:	500 N
Max. voltage:	230 V
Measured range:	500 N
Power supply:	230 V, 50/60 Hz
Power supply frequency:	50/60 Hz
Readability:	0.2 N
Type:	FK 500
Weight:	0.72 kg
Width:	195 mm

Digital force gauge FH-S

Universal digital force gauges for tension and compression tests with integrated measuring cell.Turnable display with backlightDigital force gauge with internal sensorData interface RS-232Selectable measuring units: N, lb, kgPeak-Hold function to capture peaks (measurement result will be "frozen" for a short time) or Track function mode for a continuous measurement indication (period of time approx. 10 s)Function to set limits, programming of Max./ Min., in pull and push direction, with output of acoustic and optical signal. Ideal mode for efficient and accurate testing of standard partsAuto-Power-OffInternal memory for up to 10 measurementsMini Statistics Kit: calculates the average result from up to ten stored single results, min., max., nCan be mounted on all SAUTER test standsScope of supply: Force gauge, carrying case

From €590.00*

Data transfer software AFH FAST for Digital force gauge

High speed data transfer software for force-time-measurements.Force measurements can be conducted over a very short period, i.e. seconds. A high speed data transfer to a PC is possible (with a transfer of up to 20 data sets per second) when combining the AFH FAST with force gauge. AFH FAST shows the results in a Force-Time-Graph and can export the data to MS Excel. Compatible with Microsoft Windows 7/8.1/10 operating systems. Incl. interface cable

From €115.00*

Digital force gauge FC

The compact force gauge for tensile and compressive force measurements can be mounted on all SAUTER test stands.Turnable display with backlightPeak Hold functionMetal housingCapacity display: A bar lights up to show how much of the measuring range is still availableMeasuring with tolerance range (limit-setting function)Acoustic and optical signal when the measuring range is exceededInternal memory for up to 1000 measurementsData interface: USB, RS-232Rechargeable battery pack integratedScope of supply:Force gauge, hard carrying case, standard attachments, extension rod 90 mm

From €415.00*

Mechanical force gauge FA

For measuring push and pull forces with peak hold function.Dual scale: shows Newton and kgRotatable display unit for an easy calibration of the instrumentPeak hold function by drag pointerCan be mounted on all manual test standsZeroing by a short push of the switchScope of supply:Mechanical force gauge, carrying case, standard attachments, extension rod 90 mm

From €230.00*

Digital force gauge FL-S

Universal digital force gauges with integrated measuring cell.Turnable display with backlightCan be mounted on all SAUTER test standsMetal housingSelectable measuring units: N, kN, kg, oz, lbReal time or Peak Hold Mode to observe transcients or capture peaksCapacity display: A bar lights up to show how much of the measuring range is still availableMeasuring with tolerance range (limit-setting function):Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signalInternal memory for up to 500 measurementsContinuous analogue output: Linear voltage signal in relation to the load (-2 up to +2 V)Scope of supply: Digital force gauge, hard carrying case, 3 standard attachments (FL 2K: with external measuring cell, tension loops and pressure plates, without standard attachments)

From €570.00*

Digital force gauge FH-EXT

Force-measurement device with external, high-resolution measuring cell for very slight forces or loads in machines and plants.High-resolution displayPeak Hold ModeFunction to set limits: Input of an upper/lower limit valueVisual and acoustic signalData interface RS-232Rechargeable battery packSuitable for almost all SAUTER test standsScope of supply:Force gauge, mains adapter

From €1,000.00*

Digital force gauge FH-M

Universal digital force-measuring devices for tensile and compressive force measurement with external measuring cell.Turnable display with backlightPeak Hold functionMeasuring with tolerance range (limit-setting function)Acoustic and optical signalAuto-Power-OffInternal memoryData interface RS-232Rechargeable battery pack integratedScope of supply:Force gauge, hard carrying case, tension loops, pressure plates, 3 m cable

From €1,000.00*

Digital force gauge FL-M

For tensile and compressive force measurement with external measuring cell.Graphics display with backlightPeak Hold ModeMetal housingCan be mounted on all SAUTER test standsCapacity display: A bar lights up to show how much of the measuring range is still availableMeasuring with tolerance range (limit-setting function)Internal memory for up to 500 measurementsContinuous analogue outputData interface RS-232, USBRechargeable battery operationScope of supply:Force gauge, carrying case, tension loops, mains adapter

From €690.00*

Digital force gauge FS

Force gauge with integrated measuring cell for tensile and compressive force measurement. If an external measuring channel is used, the internal load cell is deactivated as long as an external load cell is connected. Suitable for 4-wire and 6-wire sensors with strain gauges.3,5" touchscreenSimultaneous measurement on up to four channelsTwo-point adjustment with weights or numerical adjustment possibleExternal sensor data is stored directly in the connectorUSB interface for programming, data transfer and power supplyIntegrated SD card memoryTolerance functionTRACK function for continuous display of the measurementPeak value measurementRechargeable battery operationCan be mounted on all SAUTER test standsScope of supply:Force gauge, system case (systainer® T-LOC), plug-in power supply, USB cable type C

From €1,070.00*

Upgrade set test stand TVL-XL

With the extension kit for SAUTER TVL, the work zone is extended by 250 mm, which means that even larger test items can be measured. The travel path (spindle height from the base plate) remains the same when doing this: 230 mm. Casing material: metal, lacquered.

From €330.00*

Digital force gauge FH-S with screw-in tension clamp

Universal digital force gauges for tension and compression tests with integrated measuring cell.Turnable display with backlightDigital force gauge with internal sensorData interface RS-232Selectable measuring units: N, lb, kgPeak-Hold function to capture peaks (measurement result will be "frozen" for a short time) or Track function mode for a continuous measurement indication (period of time approx. 10 s)Function to set limits, programming of Max./ Min., in pull and push direction, with output of acoustic and optical signal. Ideal mode for efficient and accurate testing of standard partsAuto-Power-OffInternal memory for up to 10 measurementsMini Statistics Kit: calculates the average result from up to ten stored single results, min., max., nCan be mounted on all SAUTER test standsScope of supply:Force gauge, carrying case, screw-in tension clamp AE 500

From €710.00*

Test stand TVL-XLS, manual

Manual test stand for highly accurate tensile and compressive force measurement, with length measurement.For vertical and horizontal usePrecise measurement resultsHigh level of security with repeated measurementsLarge base plate with various holes for fixture mountingsCan be used for force gauges up to 500 N (not included)Digital length meter: Zero setting possible, pre-length can be set manually

From €760.00*
