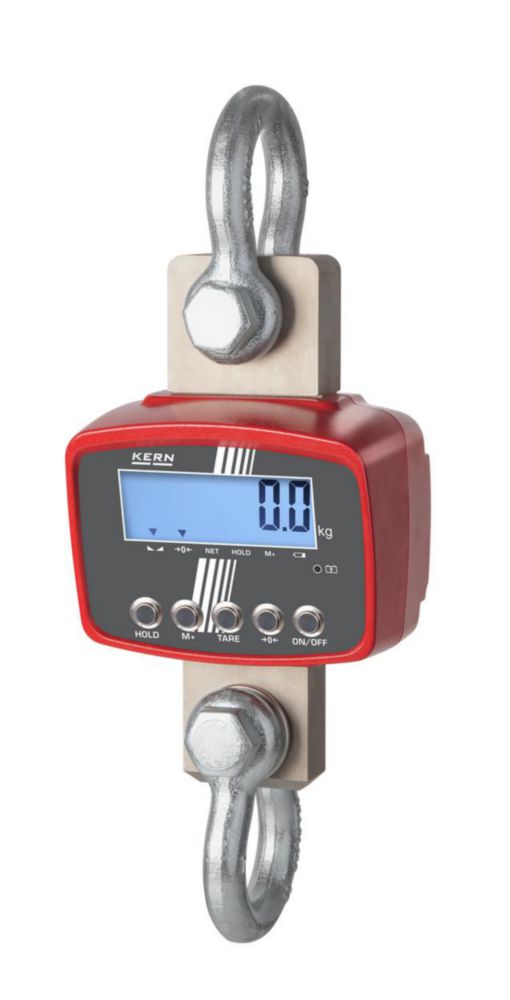

Crane balances HFD
Product number:
4709516
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
22 kg
Description
Because of its stable construction and robust design, it is ideal for continuous use in industrial environment. With the TÜV certification mark, the balance meets the requirements of the standard EN 13155 and EN 61010-1.
Scope of supply: Crane balance, radio remote control (W×D×H 65×24×100 mm), batteries
Scope of supply: Crane balance, radio remote control (W×D×H 65×24×100 mm), batteries
Properties
| Adjusting program: | External |
|---|---|
| Battery/rechargeable battery: | 7.4 V, Li Ion |
| Depth: | 194 mm |
| Dimensions (WxDxH): | 584 x 194 x 180 mm |
| Electrochemical system: | Li Ion |
| Height: | 180 mm |
| Manufacturer Article Number: | HFD 10T-3 |
| Material housing: | Die-cast aluminium |
| Max. load: | 3000/6000/12000 kg |
| Max. voltage: | 240 V·AC |
| Max. voltage battery/rechargeable battery: | 7.4 V |
| Min. voltage: | 110 V |
| Plug type: | EU/UK/CH/US/AUS |
| Power supply: | 110 ... 240 V·AC |
| Readability: | 1/2/5 kg |
| Reproducibility: | 1/2/5 kg |
| Type: | HFD 10T-3 |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| Verified calibration: | Not verifiable |
| Warranty: | 3 years |
| Weight: | 22 kg |
| Width: | 584 mm |
