Counting scales IFS
Product number:
4660299
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description

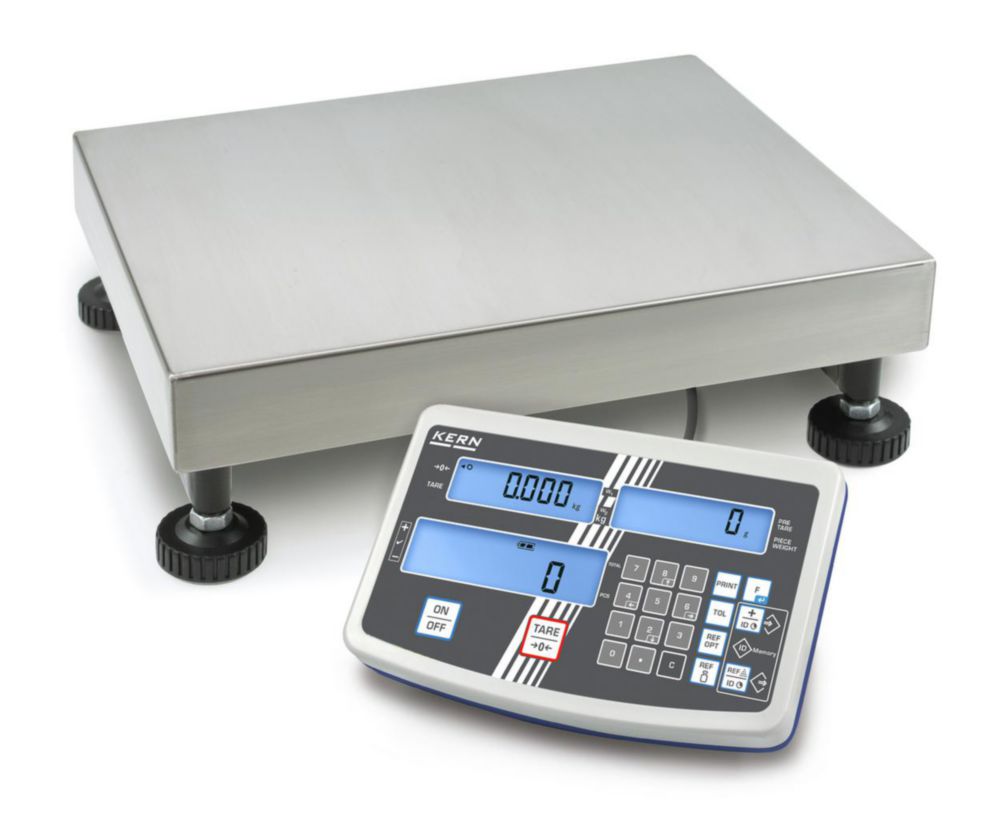

Industrial counting scale with convenient decimal keypad for easy data entry.
Scope of supply: Counting scale, protective working cover for the display
- Three LCD displays for weight display, reference weight, total pieces
- Counting resolution 60000 points
- 100 item memories for master data
- Dimensions of display device (W×D×H): 260×150×65 mm
- Interfaces RS-232
Scope of supply: Counting scale, protective working cover for the display
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 300 mm |
| Depth weighing plate: | 300 mm |
| Dimensions (WxDxH): | 400 x 300 x 120 mm |
| Height: | 120 mm |
| Manufacturer Article Number: | IFS 10K-3LM |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 6/15 kg |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/CH/US/AUS |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0.002/0.005 kg |
| Reproducibility: | 0.002/0.005 kg |
| Type: | IFS 10K-3LM |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111502 |
| Verified calibration: | Verifiable |
| Warranty: | 3 years |
| Weighing plate (WxD): | 400 x 300 mm |
| Weight: | 7 kg |
| Width: | 400 mm |
| Width weighing plate: | 400 mm |
