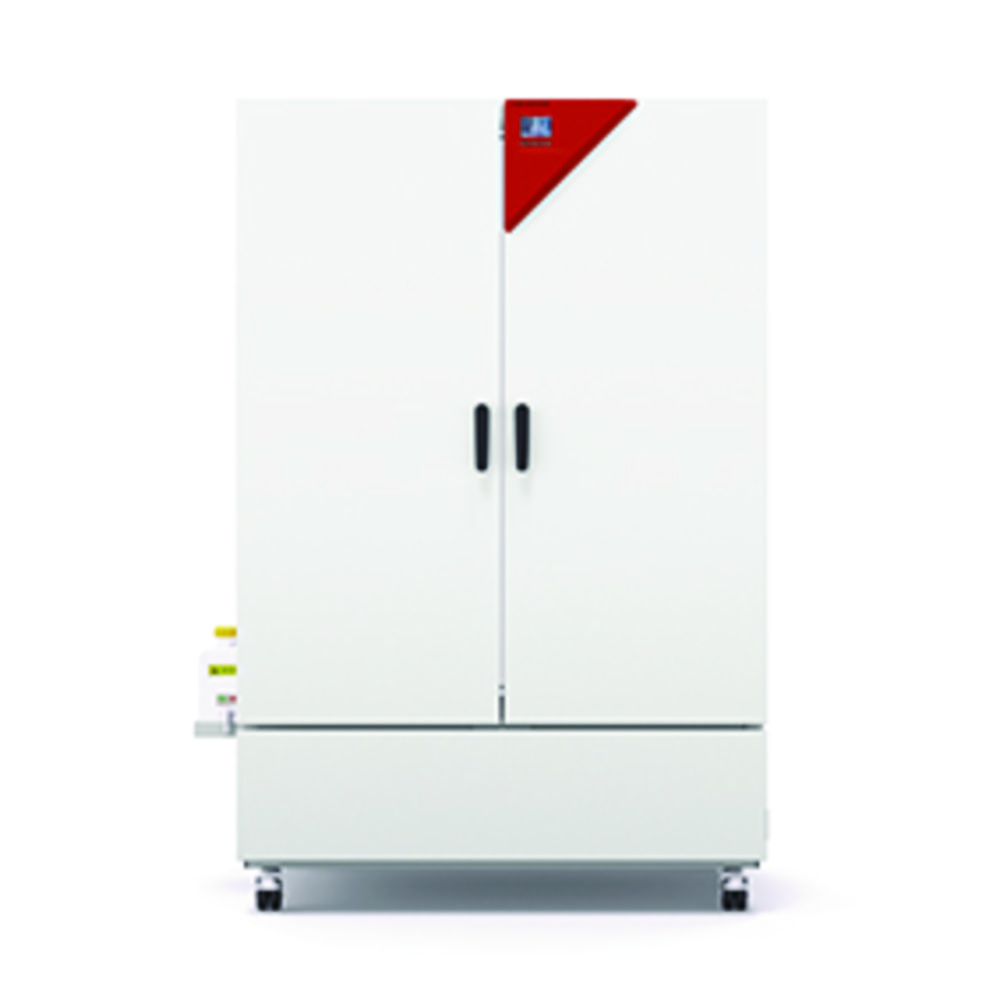

Constant climate chambers KBF-S ECO
€21,790.00*
Content:
1
Delivery according to order confirmation
Product number:
4684350
Manufacturer:
BINDER GmbH
Packaging information:
Description
Constant climate chambers for long-term tests and accelerated stability tests of pharmaceutical products according to the ICH guideline Q1A. Particularly energy-efficient and low-noise thanks to Peltier technology with patented heat dissipation.
- Homogeneous climate even with full load
- Electronically controlled APT.line™ preheating chamber technology
- Temperatures up to 28 °C below ambient temperature possible
- Inner chamber made completely of stainless steel
- 2 stainless steel grids incl. shelf support
- Access port with silicone plug Ø 30 mm, left side
- Unit self-test for comprehensive status analysis
- LCD display for indication of temperature, humidity, alarms and additional information
- Internal data logger with USB interface
- Independent water supply via canisters
Properties
| Depth int.: | 836 mm |
|---|---|
| Ext. depth: | 1146 mm |
| Ext. height: | 1925 mm |
| Ext. width: | 1254 mm |
| External dimensions (WxDxH): | 1,254 x 1,146 x 1,925 mm |
| Height int.: | 1250 mm |
| Int. width: | 973 mm |
| Internal dimensions (WxDxH): | 973 x 836 x 1,250 mm |
| Manufacturer Article Number: | 9020-0419 |
| Material inserts: | Stainless steel |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 15 |
| Max. relative humidity: | 80 % |
| Max. temperature: | 70 °C |
| Max. voltage: | 230 V |
| Min. relative humidity: | 10 % |
| Min. temperature: | 0 °C |
| Min. voltage: | 200 V |
| Nominal capacity: | 1020 l |
| Plug type: | EU |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.2 kW |
| Relative humidity: | 10 ... 80 % |
| Temperature: | 0 ... 70 °C |
| Temperature stability: | ±0,1 K (25 °C) |
| Type: | KBF-S ECO 1020 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 322 kg |
| With CO₂ control: | No |
