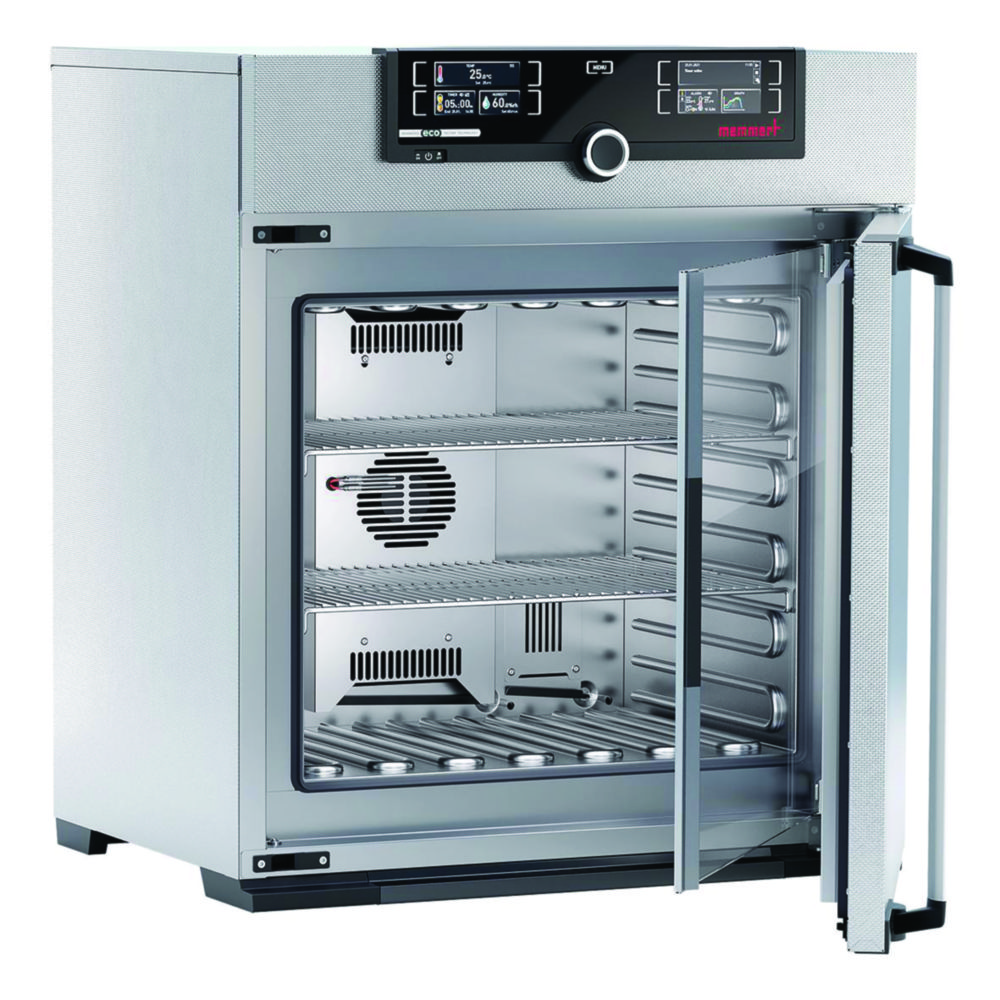

Constant Climate Chambers HPPeco
€10,986.00*
Content:
1
Delivery according to order confirmation
Product number:
9868030
Manufacturer:
Memmert GmbH + Co. KG
Packaging information:
Description
Thanks to unbeatable energy efficiency and low-maintenance operation, the HPPeco constant climate chambers are perfectly suited for stability tests, environmental testing and materials testing. The high precision temperature control as well as the active humidification and dehumidification were particularly adapted to the ICH guidelines, option Q1A, for stability tests.
TwinDISPLAY: ControlCOCKPIT with two TFT colour displays
You can find a detailed description of the "TwinDISPLAY" model at www.memmert.com
- LED light module for sizes 110 to 750 (as an option): dimmable LED light in three alternative colour temperatures (cold white light, warm white light or cold white and warm white light, dimmable in steps of 1 %)
- Heating and cooling seamlessly with one system thanks to Peltier technology. Almost vibration-free and extremely quiet
TwinDISPLAY: ControlCOCKPIT with two TFT colour displays
You can find a detailed description of the "TwinDISPLAY" model at www.memmert.com
Properties
| Depth int.: | 400 mm |
|---|---|
| Ext. depth: | 555 mm |
| Ext. height: | 864 mm |
| Ext. width: | 745 mm |
| External dimensions (WxDxH): | 745 x 555 x 864 mm |
| Height int.: | 480 mm |
| Int. width: | 560 mm |
| Internal dimensions (WxDxH): | 560 x 400 x 480 mm |
| Manufacturer Article Number: | HPP110ECO |
| Material inserts: | Stainless steel |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 5 |
| Max. relative humidity: | 90 % |
| Max. temperature: | 70 °C |
| Max. voltage: | 230 V |
| Min. relative humidity: | 10 % |
| Min. temperature: | 0 °C |
| Nominal capacity: | 108 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 420 W |
| Relative humidity: | 10 ... 90 % |
| Temperature: | 0 ... 70 °C |
| Type: | HPP110eco |
| Type of auxiliary energy: | Mains connection |
| Weight: | 64 kg |
| With CO₂ control: | No |
| With timer: | Yes |
