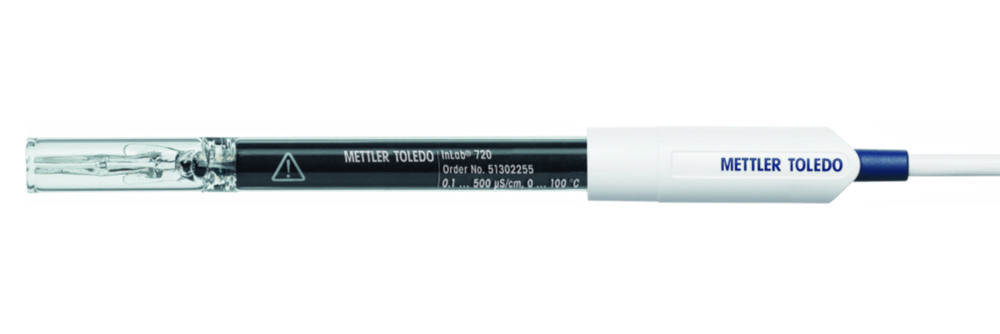

Conductivity measuring cells InLab®, platinum

Electrode measuring cells made of platinum with integrated temperature sensor and fixed cable. For aggressive or organic samples.

Cable length:	1.2 m
Cell constant:	0.06 1/cm
Conductivity:	0.1 ... 500 µS/cm
Connection plug:	Mini-DIN
Manufacturer Article Number:	51302255
Material shaft:	Glass
Max. temperature:	100 °C
Min. temperature:	0 °C
Shaft length:	120 mm
Shaft Ø:	12 mm
Temperature:	0 ... 100 °C
Temperature sensor:	NTC 30 kOhm
Type:	InLab® 720
UNSPSC:	41-11-56-10

Variants table
Buy	Unit price	Content	Delivery time	Preview	Product number	Cell constant	Conductivity	Manufacturer Article Number	Shaft length	Shaft Ø	Type

Similar products

IDS conductivity cell probes TetraCon® 925

For connection to WTW IDS measuring instruments.IDS conductivity cell probe TetraCon® 925 (/P):Intelligent digital 4-pole cell with integral temperature sensor. Automatical transfer of the cell constant. Sensor head made of POM.IDS conductivity cell probe TetraCon® 925/C:Intelligent digital 4-pole cell with integral temperature sensor. Automatical transfer of the cell constant. Sensor head made of PEEK.IDS conductivity cell probe TetraCon® 925/LV (/P):Intelligent digital 4-pole cell with integral temperature sensor. Fork design, suitable for small volumes (at least 2.5 ml) as well as for viscous samples. Automatical transfer of the cell constant.

From €620.00*

Conductivity cell probes TetraCon® 325

For all pocket measuring devices for analog measuring cells from the 3xx series, as well as all inoLab laboratory measuring devices for analog measuring cells.Standard conductivity cell probe TetraCon® 325:4-pole cell with integral temperature sensor.Special conductivity cell probe TetraCon® 325/C:As TetraCon® 325, 4-pole cell with integral temperature sensor, but with sensor head made of chemically resistant PEEK.

From €580.00*

Conductivity cell probes LR 325/01

For all Cond handheld meters for analogue measuring cells from the 3xx series, as well as all inoLab® laboratory measuring devices for analogue measuring cells. Except for the Cond 3110, Multi 340 handheld meters.Ultra-pure water conductivity cell probe LR 325/01:With integral temperature sensor and flowthrough vessel D 01/T for measuring very low conductivity ranges (<1 µS/cm) e.g. boiler feed water or deionised water. Min./max. insertion depth 35/110 mm.

From €719.00*

Conductivity measuring cells LF 435 T

With plastic shaft and internal temperature sensor NTC30 kOhm. Cable with 8-pole plug.Conductivity measuring cells with 4 electrode technique for a large measuring range of 5 µS/cm to 500 mS/cm, low maintanance and easy cleaning. For general measurements.Excellent linearity over a wide measuring range, especially for high conductivity valuesEasy cleaningLong term stable cell constant through abrasion resistant, concentric graphite electrodesIntegrated temperature sensor with short response time for automatic temperature compensation

From €400.00*

Conductivity measuring cells LF 613 T

With plastic shaft and internal temperature sensor NTC30 kOhm. Cable with 8-pole plug.For field and laboratory measurments in a measuring range of 1 µS/cm to 2000 mS/cm. Less polarisation effects through 4 electrode measuring technique with platinum ring electrodes. Easy cleaning through removable low shaft ending.

From €605.00*

Orion™ DuraProbe™ conductivity cells with 4 electrodes

Robust and precise 4 electrode graphite cells with temperatue compensation. Errors based on fringe field interference are avoided. Epoxy body.013005MDFor use with conductivity meters Orion Star, Orion Star Plus013010MD and 013605MDFor use with conductivity meters Star A112, Star A122, Star A212, Star A215, Star A222, Star A322, Star A325, Star A329, Versa Star, Versa Star Pro

From €521.00*

Conductivity measuring cells InLab®, graphite

4-electrode measuring cells made of graphite with integrated temperature sensor and fixed cable. Ideal for samples with normal and high conductivity.

From €565.00*

Conductivity measuring cells InLab®-ISM, stainless steel

2-electrode measuring cells made of stainless steel with integrated temperature sensor and fixed cable. Ideal for samples with low conductivity such as pure water and ultrapure water.ISM® (Intelligent Sensor Management) is a sophisticated safety concept that leaves nothing to chance. The instrument automatically detects the connected sensor and uses the most up-to-date calibration data stored on the sensor chip.

From €855.00*

Conductivity measuring cells InLab®-ISM, graphite

4-electrode measuring cells made of graphite with integrated temperature sensor and fixed cable. Ideal for samples with normal and high conductivity.ISM® (Intelligent Sensor Management) is a sophisticated safety concept that leaves nothing to chance. The instrument automatically detects the connected sensor and uses the most up-to-date calibration data stored on the sensor chip.

From €610.00*

Conductivity electrode CONSEN91B

2-electrode measuring cell made of PP with Ultem housing and stainless steel rings. For fast and precise conductivity and temperature measurements in the field and laboratory. With BNC and phono connector. Suitable for devices COND 6+, TDS 6+ and Salt 6+.

From €242.00*

IDS conductivity cell probe LR 925/01

For connection to WTW IDS measuring instruments.Intelligent digital 2-pole cell with integral temperature sensor and flowthrough cell D 01/T for measuring of low conductivity values (<1 µS/cm) e.g. in boiler feed water or ion exchange water. Automatical transfer of the cell constant. Min./max. immersion depth 35/110 mm.

From €858.00*

Conductivity cell probe TetraCon® DU/T

For all Cond handheld meters for analogue measuring cells from the 3xx series, as well as all inoLab® laboratory measuring devices for analogue measuring cells. Except for the Cond 3110, Multi 340 handheld meters.Conductivity flowthrough cell TetraCon® DU/T:4-pole conductivity cell with integral temperature sensor for standard applications. Connection via 10 mm diameter tubing nozzles (the adapter cable KKDU with 1 metre cable is required for connection). Filling volume 7 ml.

From €952.00*
