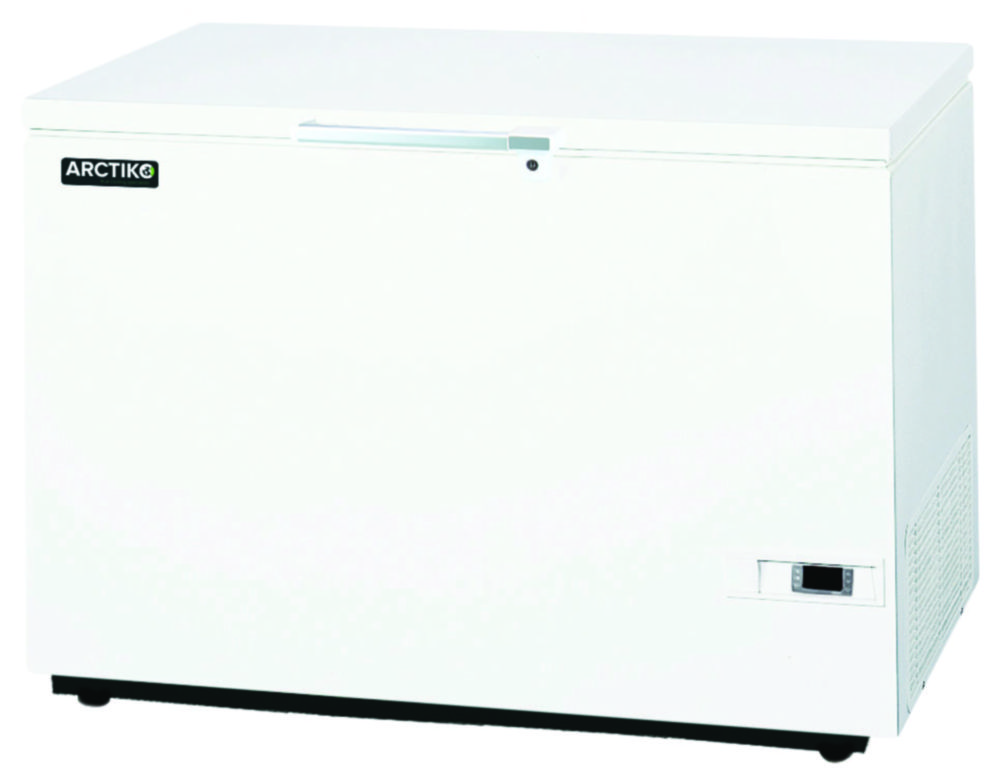

Chest freezer LTF, up to -60 °C
Product number:
6260569
Manufacturer:
Arctiko A/S
Packaging information:
Weight:
76 kg
Description
The single compressor technology provides reliable low temperature freezing and a high temerature uniformity.
- LED display
- Visual and acoustic alarm
- Adjustable high/low temperature alarm
- Low energy consumption
- Low noise level
- Filter-less construction
- Eco-friendly refrigerant
- 100 % HCFC & CFC Free
- With castors and key lock
Properties
| Amperage: | 2.8 A |
|---|---|
| Colour: | White |
| Depth int.: | 440 mm |
| Energy consumption (24h): | 6.9 kWh |
| Ext. depth: | 698 mm |
| Ext. height: | 890 mm |
| Ext. width: | 1262 mm |
| External dimensions (WxDxH): | 1,262 x 698 x 890 mm |
| Height int.: | 635 mm |
| Int. width: | 1100 mm |
| Internal dimensions (WxDxH): | 1,100 x 440 x 635 mm |
| Manufacturer Article Number: | 1300003 |
| Max. temperature: | -60 °C |
| Max. voltage: | 230 V |
| No. of baskets: | 3 |
| Nominal capacity: | 284 l |
| Power supply: | 230 V, 50 Hz , 2.8 A |
| Power supply frequency: | 50 Hz |
| Rated capacity: | 375 W |
| Temperature: | -60 °C |
| Type: | LTF325 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 76 kg |
| With glass door: | No |
