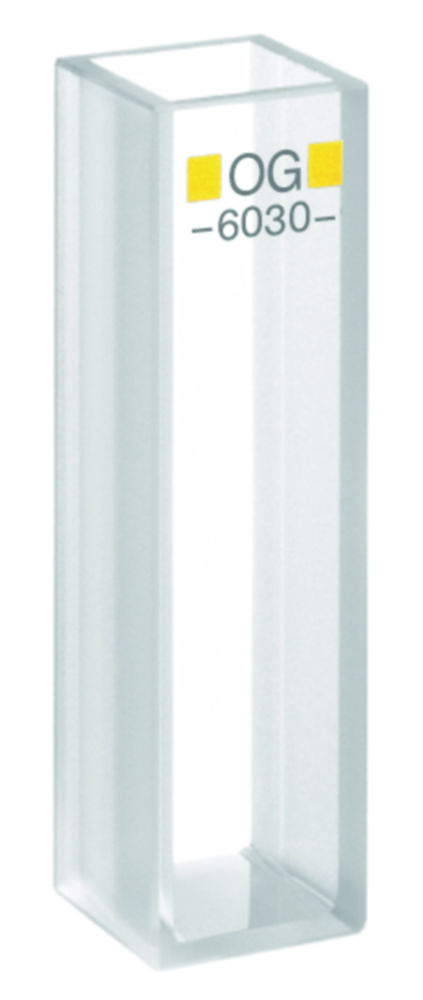

Cells for Absorption Measurement, Vis-range
Product number:
9144300
Manufacturer:
Hellma GmbH & Co. KG
Packaging information:
Length:
58 mm
Width:
37 mm
Height:
25 mm
Weight:
0.021 kg
Description
| Wavelength Range: | Optical material: |
| 260nm - 2500nm | HOQ 310H (UV) |
| 320 nm - 2500 nm | Special optical glass (OS) |
| 360 nm - 2500 nm | Optical glass (OG) |
Properties
| Capacity µl: | 3500 |
|---|---|
| Description: | PTFE lid |
| External dimensions (W x D x H) mm: | 12.5 x 12.5 x 45 |
| Internal width mm: | 9.5 |
| Manufacturer Article Number: | 6030-10-10 |
| Path length mm: | 10 |
| Type: | macro |
| optical material: | OG |
