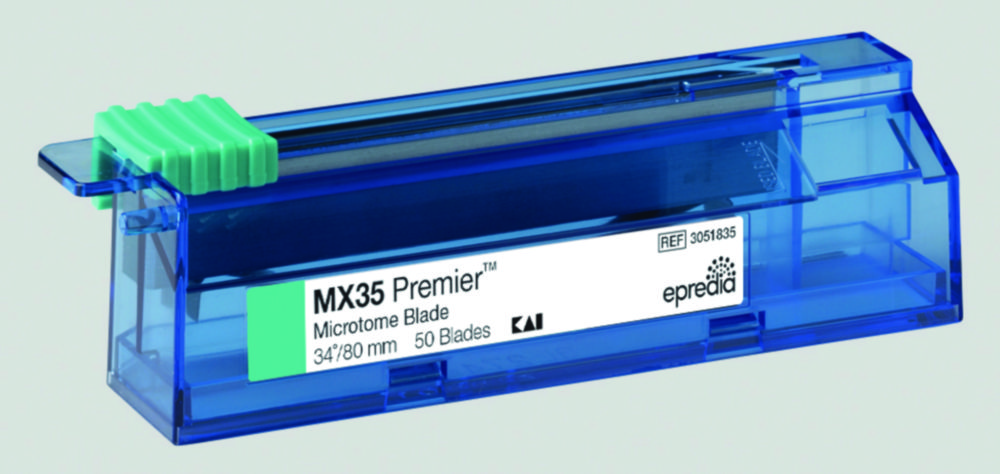

Blades for microtomes and cryostats, low profile
Epredia Netherlands BV
Product number:
4688507
Manufacturer:
Epredia Netherlands BV
Packaging information:
Length:
115 mm
Width:
29 mm
Height:
34 mm
Weight:
0.07 kg
Description
Low profile. Compatible with most common microtomes and cryostats.
Properties
| Angle: | 22 ° |
|---|---|
| Description: | Thin sections |
| Length: | 80 mm |
| Manufacturer Article Number: | 3050822 |
| Thickness: | 0.25 mm |
| Type: | MB22 Premier™ |
| Width: | 8 mm |
Skip product gallery
Blades for Microtoms, stainless steel
From
€96.60*
Rotary Microtomes RAZOR / RAZOR-e
From
€11,440.00*
Trimming Knives
From
€18.20*
Similar products
MS200: Universal blade with plasma coating for daily routine, suitable for all types of tissue. Especially suitable for ribbon sectioning, excellent sharpness, even with very thin cuts. Allrounder with unique hardened blade cutting edge, excellent durability.MS300: Very sharp blade with plasma coating, especially recommended for cutting bone tissue. Also perfect for all other tissue types as well as for ribbon sectioning.MS33: Blade for applications where extremely thin, high-quality sections are required. Suitable also for skin biopsy. Short trimming time and increased durability.MS24: For hard tissue, but also for soft tissue and biopsies. Excellent long life and sharpness, very suitable for ribbon sectioning.HP (High Profile Plasma): Excellent references for cryostat and ribbon sectioning. Special hardened blade with plasma coating, short trimming time, excellent durability.
Rotary Microtoms with disposable blades for paraffin sections for routine and research. Micro and coarse advance movements in enclosed housing. Coarse advance left side. Optimum specimen guidance by maintenance-free cross roller guides. Safety lock on hand wheel. Section thickness adjustment from 0.5 µm to 60 µm in defined steps. Precise guide way and clamping device for knifeholder with optimum sliding capability and prism guide.Manual Rotary Microtome RAZOR:The rotation of the hand wheel is light and smooth and ensures an ergonomic handling of the instrument, which greatly reduces the operators intensity in the sectioning job. The hand wheel locking is conveniently integrated in the wheel and is designed for one thumb use. The compact ergonomical design offers space for using different application tools.Fully automatic Rotary Microtome RAZOR-eOffers great user benefit and gives superior comfort to the operator. The perfectly ergonomic arrangements of the control elements enable an effortless handling of the microtome. Automatic trimming in 3 steps: 1:10 µm, 2:20 µm, 3:30 µm. The powerful cutting motor drive with safety function ensures high section stability and precision. Hand wheel lock conveniently integrated locking lever on the hand wheel. Emergency shut down button. With the emergency shut down button the slicing process can be stopped immediately.Scope of supply: Microtome Base with Knife Holder Base, Disposable Blade Holder Basic, Changeable clamping plate, Adapter Piece (fixed), Universal Cassette Clamp, Wooden Transport Box, 50 Microtome Blades MS100The microtome blades MS200 (article no.: 6.270 924) and other suitable blades are available as accessories.SpecificationsVertical stroke:70 mmHorizontal stroke:40 mmSection thickness:0.5 to 60 µmSection thickness setting:0.5 to 2 µm, 0.5 µm increments
2 to 10 µm, 1 µm increments
10 to 20 µm, 2 µm increments
20 to 60 µm, 5 µm incrementCoarse advance:manually by hand wheel left sideObject orientation:X- and Y-axes 8°, Z-axes 360°Object retraction:on upward movement 80 µmRAZOR-e only:Trimming function:1:10 µm, 2:20 µm, 3:30 µmCutting Count:integrated, LCD-display
For cutting tissue samples without causing deformation for large tissue blocks.
