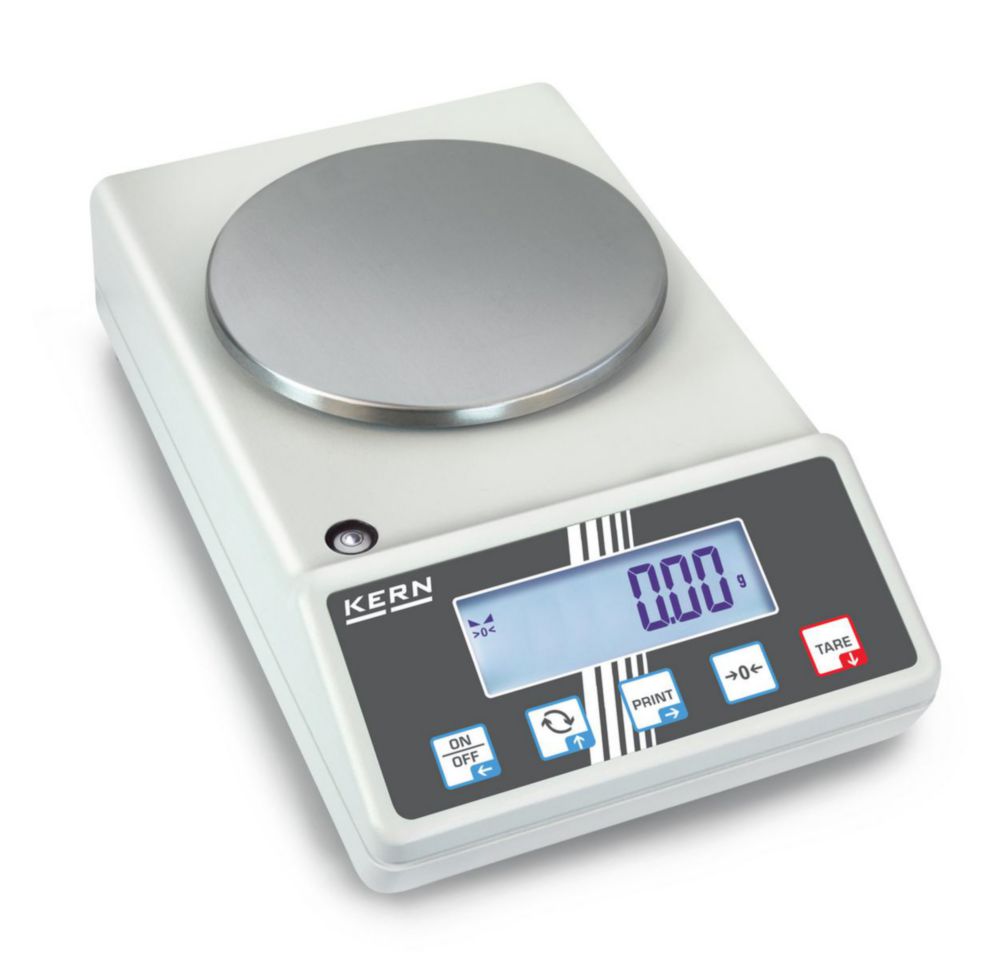

Balances, electronic, precision, 572 series
Product number:
6235320
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Length:
399 mm
Width:
345 mm
Height:
225 mm
Weight:
3.75 kg
Description
Weighing speed adjustable in two stages. Unit transfer to bullion and non-metric units of weight. With calibration adjustment programme. With net / total weighing. Piece counting: 1, 5, 10 or 20 reference pieces. Percentage weighing. Bi-directional RS232C data output supplied. Ultra low-profile, metal casing (W x D x H): 150 x 310 x 60mm. Supplied with mains adapter for 230V 50/60Hz. Balances can be alternatively operated by accessory batteries.
Also available with DKD certified calibration weight, thermal printer, statistic printer, rechargeable battery pack or label printer at additional cost.
Also available with DKD certified calibration weight, thermal printer, statistic printer, rechargeable battery pack or label printer at additional cost.
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 310 mm |
| Depth weighing plate: | 150 mm |
| Dimensions (WxDxH): | 180 x 310 x 85 mm |
| Height: | 85 mm |
| Linearity: | ±0,05 g |
| Manufacturer Article Number: | 572-39 |
| Max. load: | 4200 g |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0,01 g |
| Reproducibility: | 0,02 g |
| Type: | 572-39 |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| UNSPSC: | 41-11-15-17 |
| Weighing plate (WxD): | Ø 150 mm |
| Width: | 180 mm |
| With draft shield: | No |
